IL91350A Datasheet - IK Semiconductor

13-Memory Tone/Pulse Dialer

IL91350A Features

* Handfree dialing, Hold, and 13 by 16 digits automatic dialing memory.

* DTMF/PULSE switchable dialer

* 32 digits for Redial memory

* Three by 16 digits for one touch direct repertory

* Ten by 16 digits for two touch indirect repertory

* Mix dialing is allowabl

IL91350A General Description

Pin No. 1-4 17 - 20 5 Designation Column-Row Inputs H/P MUTE Description The Keyboard input may be used with the standard 4 x 5 keyboard. A valid key entry is defined by a single row being connected to a single column. The H/P MUTE is a conventional inverter output. In pulse dialing, flash and hold .

IL91350A Datasheet (560.21 KB)

Preview of IL91350A PDF

Datasheet Details

Part number:

IL91350A

Manufacturer:

IK Semiconductor

File Size:

560.21 KB

Description:

13-memory tone/pulse dialer.

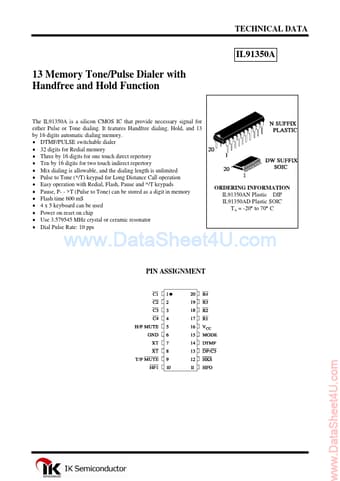

TECHNICAL DATA IL91350A 13 Memory Tone/Pulse Dialer with Handfree and Hold Function The IL91350A is a silicon CMOS IC that provide necessary signal.
