IL9002 Datasheet - IK Semiconductor

OPERATIONAL AMPLIFIER

IL9002 Features

* EXTREMELY LOW OFFSET : 250V MAX

* LOW INPUT BIAS CURRENT : 14nA

* LOW Vio DRIFT : 0.5mV/oC

* SUPPLY VOLTAGE RANGE :± 13V to ± 18V Symbol Vcc V,d Vi Toper Parameter Supply Voltage Differential Input Voltage Input Voltage Operating Temperature Value ±15 ±5 ±10 -10 to +70 Unit V

IL9002 General Description

Pin # 01 02 03 04 05 06 07 08 Symbol OFFSET 1 ININ+ VCCNC OUT VCC+ OFFSET 2 Function Balance input 1 Inverse input Non-inverse input Supply pin from the negative supply source Vacant pin Output Supply pin from the positive supply source Balance input 2 2011, April, Ver. 00 IL9002 / IL9002A ELE.

IL9002 Datasheet (355.11 KB)

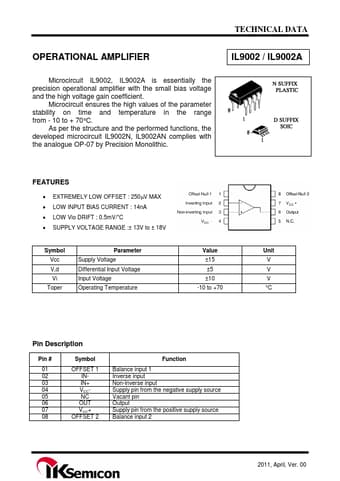

IL9002 Datasheet Preview — Preview of IL9002 PDF

Datasheet Details

Part number:

IL9002

Manufacturer:

IK Semiconductor

File Size:

355.11 KB

Description:

Operational amplifier.
TECHNICAL DATA OPERATIONAL AMPLIFIER Microcircuit IL9002, IL9002A is essentially the precision operational amplifier with the small bias voltage and .
