IL9010N Datasheet - Integral

IC of collector electric motor controller

IL9010N Features

* Circuit power supply obtained from AC net Can be used in with AC networks 220 V / 50 Hz and 110 V / 60 Hz Low count and cost of external components Optimal triac firing (2nd and 3nd quadrants) Repetitive control pulses when current interrupted by electric motor collector Tracing triac current while

IL9010N General Description

At fig. 1 is standard connection circuit of IL9010N IC in collector electric motor control circuit and motor protection from load current exceeding. In addition, circuit provides protection from motor overheat (resistor R3). Motor protection from load current exceeding is implementing through prote.

IL9010N Datasheet (230.20 KB)

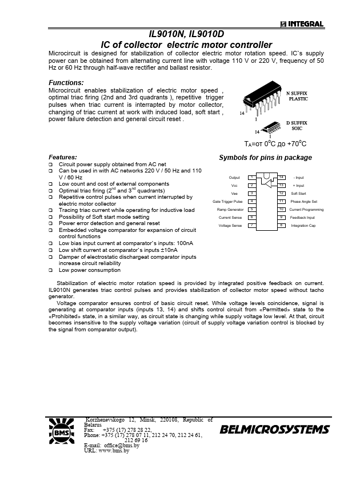

IL9010N Datasheet Preview — Preview of IL9010N PDF

Datasheet Details

Part number:

IL9010N

Manufacturer:

Integral

File Size:

230.20 KB

Description:

Ic of collector electric motor controller.
IL9010N, IL9010D IC of collector electric motor controller Microcircuit is designed for stabilization of collector electric motor rotation speed. IC`s.
