IL91214 Datasheet - IK Semiconductor

Tone/Pulse Dialer with Handsfree control and Flash Function

IL91214 General Description

Hook switch input MODE IN = VDD: pulse mode, 10 Hz, М/В = 1/2, MODE IN = VSS: tone mode, MODE IN = floating mode, 20 Hz, М/В = 1/2 Oscillator input Oscillator output Ground Supply output Tone dialing output Dialing transmission mute output Mode output pin Key-in tone output Dialing pulse output Keyb.

IL91214 Datasheet (959.08 KB)

IL91214 Datasheet Preview — Preview of IL91214 PDF

Datasheet Details

Part number:

IL91214

Manufacturer:

IK Semiconductor

File Size:

959.08 KB

Description:

Tone/pulse dialer with handsfree control and flash function.

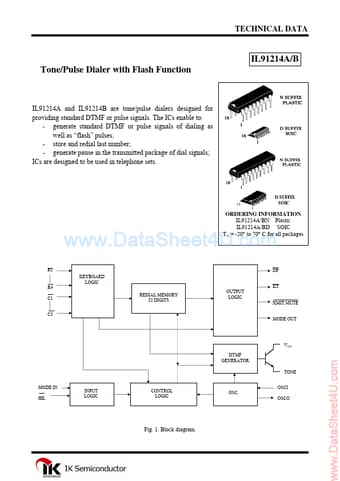

TECHNICAL DATA IL91214A/B Tone/Pulse Dialer with Flash Function IL91214A and IL91214B are tone/pulse dialers designed for providing standard DTMF or.
