DK5V100R05ST1 Datasheet - DONGKE SEMICONDUCTOR

High Performance Synchronous Rectifier

DK5V100R05ST1 Features

* Suitable for fly-back PSR/SSR applications

* Ultra low VF

* Ultra low temperature rise

* 100V XXmΩ NMOS integrated

* Support CCM&DCM&QR fly-back mode

* Patented self-power supply, no need of external power supply component

* With intelligent detection system, no need of

DK5V100R05ST1 General Description

DK5V100RXXST1 is a simple but high efficiency synchronous rectifier IC with only two function pins A-K, corresponding A-K pins of Schottky diode. With 100V power NMOS integrated, it can significantly reduce the conduction loss of traditional Schottky diode and improve the overall efficiency. It can.

DK5V100R05ST1 Datasheet (297.72 KB)

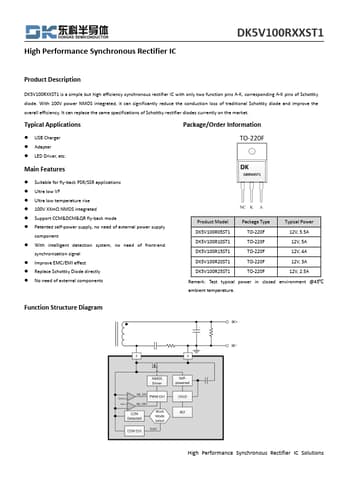

Preview of DK5V100R05ST1 PDF

Datasheet Details

Part number:

DK5V100R05ST1

Manufacturer:

DONGKE SEMICONDUCTOR

File Size:

297.72 KB

Description:

High performance synchronous rectifier.
