DK5V100R15ST1 High Performance Synchronous Rectifier

DK5V100RXXST1 is a simple but high efficiency synchronous rectifier IC with only two function pins A-K, corresponding A-K pins of Schottky diode. With 100V power NMOS integrated, it can significantly reduce the conduction loss of traditional Schottky diode and improve the overall efficiency. It can.

DK5V100R15ST1 Features

* Suitable for fly-back PSR/SSR applications

* Ultra low VF

* Ultra low temperature rise

* 100V XXmΩ NMOS integrated

* Support CCM&DCM&QR fly-back mode

* Patented self-power supply, no need of external power supply component

* With intelligent detection system, no need of

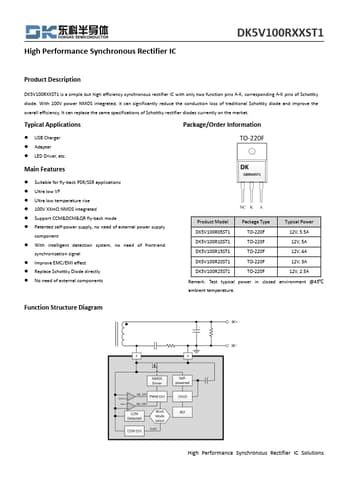

DK5V100R05ST1-DONGKESEMICONDUCTOR.pdf

DK5V100R15ST1 Datasheet Preview — This datasheet PDF includes multiple part numbers: DK5V100R15ST1, DK5V100R05ST1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DK5V100R15ST1, DK5V100R05ST1

Manufacturer:

DONGKE SEMICONDUCTOR

File Size:

297.72 KB

Description:

High performance synchronous rectifier.

Note:

This datasheet PDF includes multiple part numbers: DK5V100R15ST1, DK5V100R05ST1.
Please refer to the document for exact specifications by model.
