DK5V150R25ST1 Datasheet - DONGKE SEMICONDUCTOR

Synchronous Rectifier

DK5V150R25ST1 Features

* Suitable for PSR or SSR IC application

* Ultra high efficiency and low temperature

* Ultra low VF

* Improves EMC/EMI characteristics

* Works under CCM, DCM and QR mode in flyback system

* Internal integrated 25mΩ /150V NMOS

* Self-power supply design, no external power supply

DK5V150R25ST1 General Description

DK5V150R25ST1 is a simple design and high efficiency synchronous rectifying IC. It is of TO-220F package with only A and K poles, it can directly replace the SBD rectifying diode with P and N poles. With 150V NMOS integrated, it can greatly decrease the conduction loss, so that working efficiency of.

DK5V150R25ST1 Datasheet (520.83 KB)

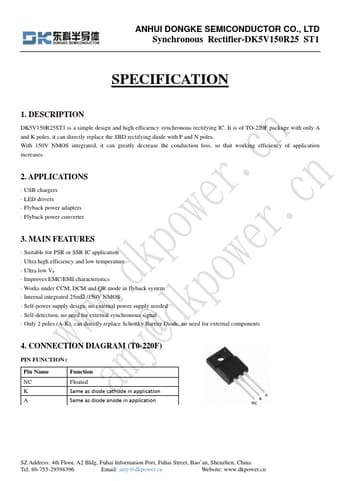

DK5V150R25ST1 Datasheet Preview — Preview of DK5V150R25ST1 PDF

Datasheet Details

Part number:

DK5V150R25ST1

Manufacturer:

DONGKE SEMICONDUCTOR

File Size:

520.83 KB

Description:

Synchronous rectifier.
