RCLAMP0521P-N - bi-directional TVS Diode

RCLAMP0521P-N Description

.
The RCLAMP0521P-N is a bi-directional TVS di-ode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping v.

RCLAMP0521P-N Features

*  Ultra small package: 1.0x0.6x0.5mm  Ultra low capacitance: 0.3pF typical  Ultra low leakage: nA level  Low operating voltage: 5V  Low clamping voltage  2-pin leadless package  Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharg

RCLAMP0521P-N Applications

*  Smart phones  Display Ports  MDDI Ports  USB Ports  Digital Video Interface (DVI)  PCI Express and Serial SATA Ports Marking Diagram Transparent top view 21:Device Marking Code 0571-87006810 Ordering Information Part Number Packaging Reel Size RCLAMP0521P-N 10000/Tape & Reel 7 inch www. dow

📥 Download Datasheet

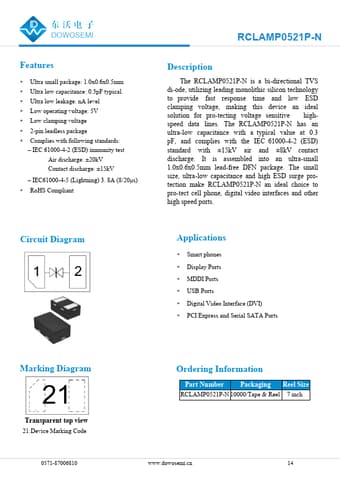

RCLAMP0521P-N Datasheet Preview — Preview of RCLAMP0521P-N PDF

Datasheet Details

Part number: RCLAMP0521P-N
Manufacturer: DOWOSEMI
File Size: 1.09 MB
Datasheet: RCLAMP0521P-N-DOWOSEMI.pdf
Description: bi-directional TVS Diode
