RCLAMP0522P - TVS Diode

Leiditech

RCLAMP0522P Description

RCLAMP0522P 2-Line Ultra Low Capacitance TVS Diode Array .

RCLAMP0522P Features

* Ultra low leakage: nA level
* Operating voltage: 5V
* Ultra low capacitance:0.3pF typical
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
* IEC61000-4-4 (EFT) 40A (5/50

RCLAMP0522P Applications

* USB 3.0 line
* HDMI1.4 Set-top box and digital TV
* 10/100/1000 Ethernet
* Notebook Computers
* SATA Ports
* MDDI Ports Dimensions DFN1610-6 Pin Configuration I/O 1 NC Pin 1 Pin 2 NC Mechanical Characteristics 3, 4
* Package: DFN1610-6
* Lead Finish: Lead

📥 Download Datasheet

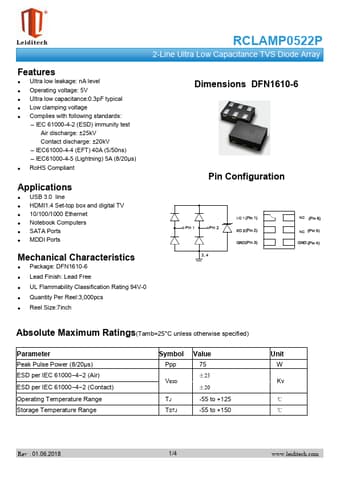

RCLAMP0522P Datasheet Preview — Preview of RCLAMP0522P PDF

Datasheet Details

Part number: RCLAMP0522P
Manufacturer: Leiditech
File Size: 1.25 MB
Datasheet: RCLAMP0522P-Leiditech.pdf
Description: TVS Diode
