RClamp0522PA - Ultra Low Capacitance TVS Arrays

Semtech Corporation

📥 Download Datasheet

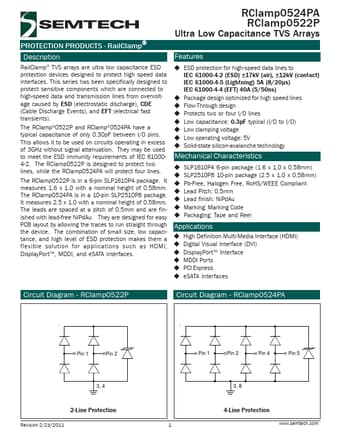

RClamp0522PA Datasheet Preview — Preview of RClamp0522PA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RClamp0522PA
Manufacturer: Semtech Corporation
File Size: 368.04 KB
Datasheet: RClamp0522PA-SemtechCorporation.pdf
Description: Ultra Low Capacitance TVS Arrays

RClamp0522PA Product details

Description

RailClamp® T VS arrays are ultra lo w capacitance ESD protection devices designed to protect high speed data interfaces..

Features

ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±1 7kV (air), ±1 2kV (cont act) IEC 61000-4-5 (Lightning) 5A (8/20 μs) IEC 61000-4-4 (EFT) 40A (5/50ns) Package design optimized for high speed lines Flow-Through design Protects two or four I/O lines Low capacitance: 0.3pF typical (I/O to I/O) Low clamping voltage Low operating voltage: 5V Solid-state silicon-avalanche technology SLP1610P4 6-pin pack age (1.6 x 1 .0 x 0.58mm) SLP2510P8 10-pin package (2.5 x 1 .0 x 0.58mm) Pb-Free.
