1N2810B-M DIODE

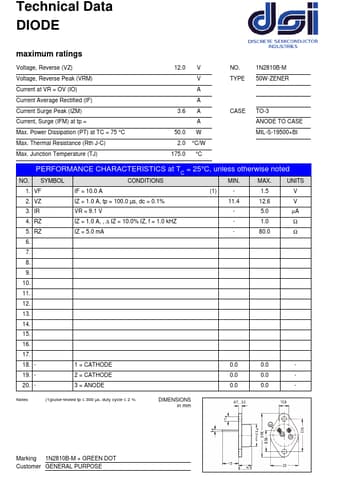

Technical Data DIODE maximum ratings Voltage, Reverse (VZ) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IZM) Current, Surge (IFM) at tp = Max. Power Dissipation (PT) at TC = 75 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) 12.0 V empty V empty A empty A 3.6 A empty A 50.0 W 2.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N2810B-M 50W-ZENER empty empty TO-3 ANODE TO CASE MIL-S-19500+BI PERFO.

1N2810B-M Datasheet (38.13 KB)

1N2810B-M Datasheet Preview — Preview of 1N2810B-M PDF

Datasheet Details

Part number:

1N2810B-M

Manufacturer:

DSI

File Size:

38.13 KB

Description:

Diode.
