1N2811B-M - DIODE

📥 Download Datasheet

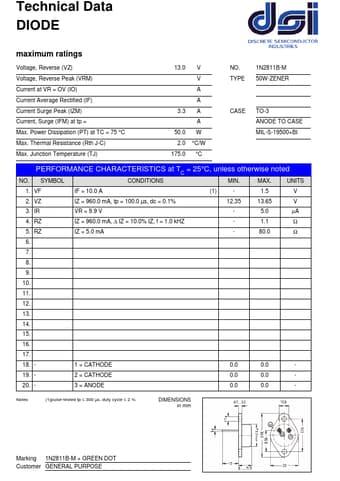

Datasheet preview – 1N2811B-M

Datasheet Details

Part number 1N2811B-M
Manufacturer DSI
File Size 38.13 KB
Description DIODE
Datasheet download datasheet 1N2811B-M Datasheet
Additional preview pages of the 1N2811B-M datasheet.

📁 Similar Datasheet

  • 1N2811B - 50 Watt Zener Diodes (Microsemi)
  • 1N2811B - 50W Zener Diodes (Naina Semiconductor)
  • 1N2811B - SILICON ZENER DIODES (Central Semiconductor)
  • 1N2811 - (1N2804 - 1N2846) ZENER DIODES (Motorola)
  • 1N2811 - (1N2804 - 1N2846) 50W Silicon Zener Diodes (NES)
  • 1N2810 - (1N2804 - 1N2846) ZENER DIODES (Motorola)
  • 1N2810 - (1N2804 - 1N2846) 50W Silicon Zener Diodes (NES)
  • 1N2810B - 50 Watt Zener Diodes (Microsemi)
  • 1N2810B - 50W Zener Diodes (Naina Semiconductor)
  • 1N2810B - SILICON ZENER DIODES (Central Semiconductor)
Other Datasheets by DSI

Full PDF Text Transcription

Click to expand full text
Technical Data DIODE maximum ratings Voltage, Reverse (VZ) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IZM) Current, Surge (IFM) at tp = Max. Power Dissipation (PT) at TC = 75 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) 13.0 V empty V empty A empty A 3.3 A empty A 50.0 W 2.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N2811B-M 50W-ZENER empty empty TO-3 ANODE TO CASE MIL-S-19500+BI PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. VF IF = 10.0 A (1) - 1.5 V 2. VZ IZ = 960.0 mA, tp = 100.0 µs, dc = 0.1% 12.35 13.65 V 3. IR VR = 9.9 V - 5.0 µA 4. RZ IZ = 960.0 mA, ∆ IZ = 10.0% IZ, f = 1.0 kHZ - 1.1 Ω 5.
