DS2-16A Datasheet - DSI

DS2-16A DIODE

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IF RMS) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = 45 °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 1600.0 V 1600.0 V empty A 1.2 A 7.0 A 120.0 A empty W 115.0 °C/W 180.0 °C NO. TYPE empty empty CASE empty empty DS2-16A RECTIFIER empty empty DO-13X_D=8MM empty empty PERFO.

DS2-16A Datasheet (30.40 KB)

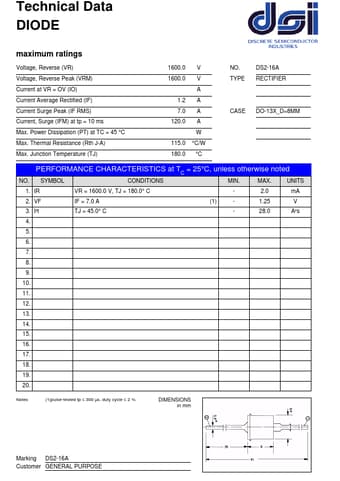

DS2-16A Datasheet Preview — Preview of DS2-16A PDF

Datasheet Details

Part number:

DS2-16A

Manufacturer:

DSI

File Size:

30.40 KB

Description:

Diode.
