LM2016 Datasheet - DYNAMIS

LM2016 3.0V Primary Lithium-Manganese Dioxide

LITHIUM-MANGAN-LINE LM 2016 SLF/3 Order no. 60.08508 3,0V Primary Lithium-Manganese Dioxide (Li-MnO2) Electrical characteristics (typical values relative to cells stored for one year or less at +30°C max.) nominal capacity nominal voltage max. constant current max. pulse current operating temperature range service life under proper range 80 mAh 3,0V 3 mA 15 mA -20°C ~ +70°C 10 years Physical characteristics diameter (max.) height (max) typical weight 20,0 mm 1,6 mm 1,8 g Warning Av.

LM2016 Datasheet (367.15 KB)

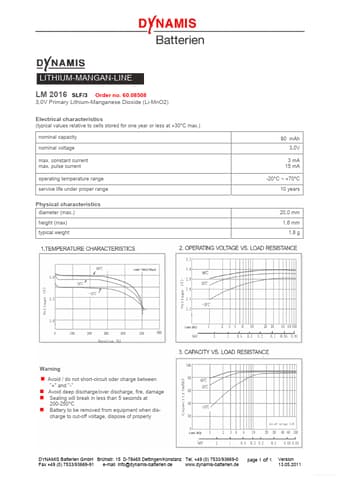

LM2016 Datasheet Preview — Preview of LM2016 PDF

Datasheet Details

Part number:

LM2016

Manufacturer:

DYNAMIS

File Size:

367.15 KB

Description:

3.0v primary lithium-manganese dioxide.
