LM20124-Q1, LM20124, Synchronous Buck Regulator

LM20124, LM20124-Q1 www.ti.com SNVS507F * OCTOBER 2007 * REVISED MARCH 2013 4A, 1MHz PowerWise® Synchronous Buck Regulator Check for.
The LM20124 is a full featured 1 MHz synchronous buck regulator capable of delivering up to 4A of continuous output current.

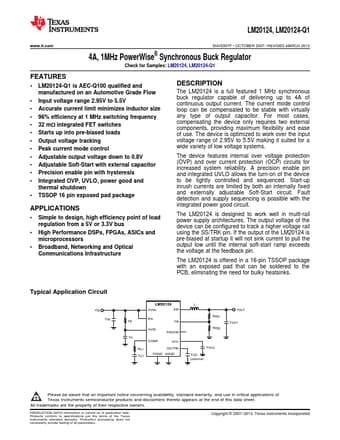

datasheet Preview Page 1 from Datasheet4u.com

LM20124-etcTI.pdf

LM20124-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM20124-Q1, LM20124. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LM20124-Q1, LM20124

Manufacturer:

Texas Instruments ↗

File Size:

0.97 MB

Description:

Synchronous Buck Regulator

Note:

This datasheet PDF includes multiple part numbers: LM20124-Q1, LM20124.
Please refer to the document for exact specifications by model.

Features

* 1
* 2 LM20124-Q1 is AEC-Q100 qualified and manufactured on an Automotive Grade Flow
* Input voltage range 2.95V to 5.5V
* Accurate current limit minimizes inductor size
* 96% efficiency at 1 MHz switching frequency
* 32 mΩ integrated FET switches
* Star

Applications

* Simple to design, high efficiency point of load regulation from a 5V or 3.3V bus
* High Performance DSPs, FPGAs, ASICs and microprocessors
