DCR1460F30 - Phase Control Thyristor

DCR1460F30 Description

Replaces DS6046-1 DCR1460F30 Phase Control Thyristor DS6046-2 June 2019 (LN38866) .

DCR1460F30 Features

* Double Side Cooling

DCR1460F30 Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR1460F30 DCR1460F28 DCR1460F26 DCR1460F24 3000 2800 2600 2400 Tvj = -40°C to 125°C, IDRM = IRRM = 150mA, VDRM, VRRM tp

📥 Download Datasheet

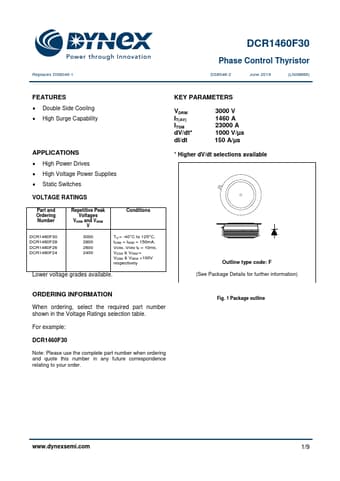

Preview of DCR1460F30 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCR1460F30
Manufacturer
DYNEX
File Size
645.66 KB
Datasheet
DCR1460F30-DYNEX.pdf
Description
Phase Control Thyristor
