DS1021 - Programmable 8-Bit Silicon Delay Line

Dallas Semiconducotr

The DS1021 by Dallas Semiconducotr is a Programmable 8-Bit Silicon Delay Line. Below is the official datasheet preview.

📥 Download Datasheet

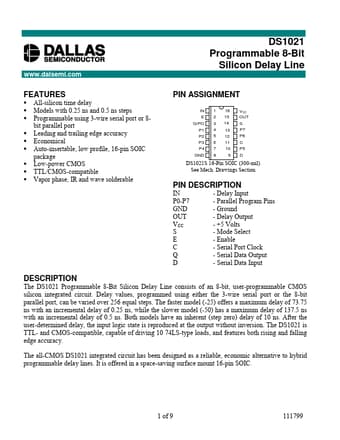

DS1021 Programmable 8-Bit Silicon Delay Line by Dallas Semiconducotr - Datasheet Preview — Official preview page of the **DS1021** Programmable 8-Bit Silicon Delay Line datasheet (Dallas Semiconducotr).

Datasheet Details

Part number	DS1021
Manufacturer	Dallas Semiconducotr
File Size	193.98 KB
Description	Programmable 8-Bit Silicon Delay Line
Datasheet	DS1021_DallasSemiconducotr.pdf
Additional preview pages of the DS1021 datasheet.

DS1021 Product details

Description

IN P0-P7 GND OUT VCC S E C Q D - Delay Input - Parallel Program Pins - Ground - Delay Output - +5 Volts - Mode Select - Enable - Serial Port Clock - Serial Data Output - Serial Data Input DESCRIPTION The DS1021 Programmable 8-Bit Silicon Delay Line consists of an 8-bit, user-programmable CMOS silicon integrated circuit.Delay values, programmed using either the 3-wire serial port or the 8-bit parallel port, can be varied over 256 equal steps.The faster model (-25) offers a maximum delay of 73.

Features

All-silicon time delay Models with 0.25 ns and 0.5 ns steps Programmable using 3-wire serial port or 8bit parallel port Leading and trailing edge accuracy Economical Auto-insertable, low profile, 16-pin SOIC package Low-power CMOS TTL/CMOS-compatible Vapor phase, IR and wave solderable PIN.
