DS1023 - 8-Bit Programmable Timing Element

Dallas Semiconducotr

The DS1023 by Dallas Semiconducotr is a 8-Bit Programmable Timing Element. Below is the official datasheet preview.

📥 Download Datasheet

DS1023 8-Bit Programmable Timing Element by Dallas Semiconducotr - Datasheet Preview — Official preview page of the **DS1023** 8-Bit Programmable Timing Element datasheet (Dallas Semiconducotr).

Datasheet Details

Part number	DS1023
Manufacturer	Dallas Semiconducotr
File Size	261.30 KB
Description	8-Bit Programmable Timing Element
Datasheet	DS1023_DallasSemiconducotr.pdf

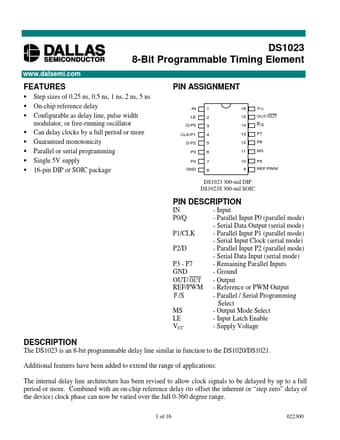

Additional preview pages of the DS1023 datasheet.

DS1023 Product details

Description

IN P0/Q P1/CLK P2/D P3 - P7 GND OUT/ OUT REF/PWM P /S MS LE VCC - Input - Parallel Input P0 (parallel mode) - Serial Data Output (serial mode) - Parallel Input P1 (parallel mode) - Serial Input Clock (serial mode) - Parallel Input P2 (parallel mode) - Serial Data Input (serial mode) - Remaining Parallel Inputs - Ground - Output - Reference or PWM Output - Parallel / Serial Programming Select - Output Mode Select - Input Latch Enable - Supply Voltage DESCRIPTION The DS1023 is an 8-bit programmab

Features

Step sizes of 0.25 ns, 0.5 ns, 1 ns, 2 ns, 5 ns On-chip reference delay Configurable as delay line, pulse width modulator, or free-running oscillator Can delay clocks by a full period or more Guaranteed monotonicity Parallel or serial programming Single 5V supply 16-pin DIP or SOIC package PIN.
