DS1213C

SmartSocket 256k

DS1213C Features

* Accepts standard 32K x 8 CMOS static RAMs Embedded lithium energy cell retains RAM data Self-contained circuitry safeguards data Data retention time is greater than 10 years with the proper RAM selection Proven gas-tight socket contacts Operating temperature range 0°C to 70°C PIN ASSIGNMENT 1 2 3 4

DS1213C General Description



* Conditioned Chip Enable

* Switched VCC VCC GND

* Ground All pins pass through except 20 and 28. CE DESCRIPTION The DS1213C SmartSocket is a 28-pin, 600 mil DIP socket with a built-in CMOS controller circuit and an embedded lithium energy source. It accepts a 32K x 8 JEDEC .

DS1213C Datasheet (32.17 KB)

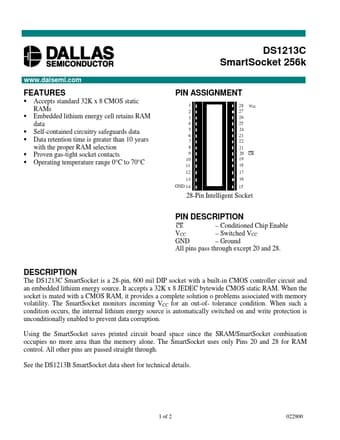

Preview of DS1213C PDF

Datasheet Details

Part number:

DS1213C

Manufacturer:

Dallas Semiconducotr

File Size:

32.17 KB

Description:

Smartsocket 256k.
