DS1213D

SmartSocket 256k/1M

DS1213D Features

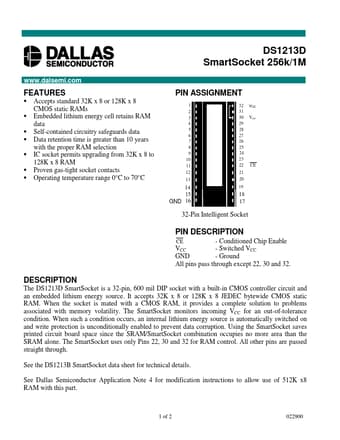

* Accepts standard 32K x 8 or 128K x 8 CMOS static RAMs Embedded lithium energy cell retains RAM data Self-contained circuitry safeguards data Data retention time is greater than 10 years with the proper RAM selection IC socket permits upgrading from 32K x 8 to 128K x 8 RAM Proven gas-tight socket con

DS1213D General Description

CE - Conditioned Chip Enable VCC - Switched VCC GND - Ground All pins pass through except 22, 30 and 32. DESCRIPTION The DS1213D SmartSocket is a 32-pin, 600 mil DIP socket with a built-in CMOS controller circuit and an embedded lithium energy source. It accepts 32K x 8 or 128K x 8 JEDEC bytewide C.

DS1213D Datasheet (31.32 KB)

Preview of DS1213D PDF

Datasheet Details

Part number:

DS1213D

Manufacturer:

Dallas Semiconducotr

File Size:

31.32 KB

Description:

Smartsocket 256k/1m.
