DS1557

4MEG NV Y2KC Timekeeping RAM

DS1557 Features

* Integrated NV SRAM, Real-Time Clock (RTC), Crystal, Power-Fail Control Circuit, and Lithium Energy Source

* Clock Registers are Accessed Identically to the Static RAM; These Registers Reside in the 16 Top RAM Locations

* Century Byte Register (i.e., Y2K Compliant)

* Totally Nonvola

DS1557 General Description

A0

*A18 - Address Input DQ0

*DQ7 IRQ/FT - Data Input/Outputs - Interrupt, Frequency Test Output (Open Drain) RST - Power-On Reset Output (Open Drain) CE - Chip Enable OE - Output Enable WE - Write Enable VCC GND - Power-Supply Input - Ground X1, X2 - Crystal Connectio.

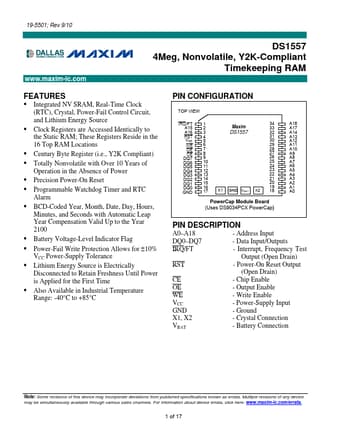

DS1557 Datasheet (249.40 KB)
