DS21T05 Datasheet, Terminator, Dallas Semiconducotr

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Maxim Integrated Products	DS21T05	DS21T05S-T-R	IC TERMINATOR SCSI 300MIL 16SOIC	DigiKey	0	5000 units	$1.98	🛒 Buy Now

📥 Download PDF (99.15 KB)

PDF File Details

Dallas Semiconducotr manufacturer logo

Part number:

DS21T05

Manufacturer:

Dallas Semiconducotr

File Size:

99.15 KB

Download:

📄 Datasheet

Description:

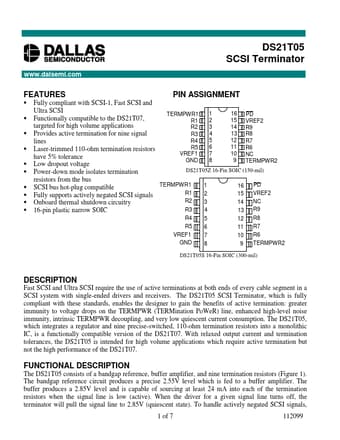

Scsi terminator. Fast SCSI and Ultra SCSI require the use of active terminations at both ends of every cable segment in a SCSI system with single-ende

✔ DS21T05 Features

PIN ASSIGNMENT Fully compliant with SCSI-1, Fast SCSI and Ultra SCSI 16 1 PD TERMPWR1 Functionally compatible to the DS21T07, 15 2 R1 VREF2 targeted for high volume app

✔ DS21T05 Application

14 3 R2 R9 R8 4 13 Provides active termination for nine signal R3 12 5 R4 R7 lines 11 6 R5 R6 Laser-trimmed
