DS9034PCI - PowerCap

Product Overview

Dallas Semiconducotr

Datasheet Details

Part number	DS9034PCI
Manufacturer	Dallas Semiconducotr
File Size	114.07 KB
Description	PowerCap
Datasheet	DS9034PCI Datasheet
Additional preview pages of the DS9034PCI datasheet.

Product details

Description

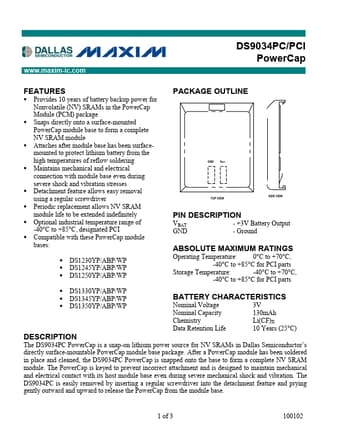

VBAT GND - +3V Battery Output - Ground ABSOLUTE MAXIMUM RATINGS Operating Temperature: 0°C to +70°C, -40°C to +85°C for PCI parts Storage Temperature: -40°C to +70°C, -40°C to +85°C for PCI parts BATTERY CHARACTERISTICS Nominal Voltage Nominal Capacity Chemistry Data Retention Life 3V 130mAh Li(CF)X 10 Years (25°C) DESCRIPTION The DS9034PC PowerCap is a snap-on lithium power source for NV SRAMs in Dallas Semiconductor’s directly surface-mountable PowerCap module base package.After a PowerCap

Features

Provides 10 years of battery backup power for Nonvolatile (NV) SRAMs in the PowerCap Module (PCM) package Snaps directly onto a surface-mounted PowerCap module base to form a complete NV SRAM module Attaches after module base has been surfacemounted to protect lithium battery from the high temperatures of reflow soldering Maintains mechanical and electrical connection with module base even during severe shock and vibration stresses Detachment featu.
