DS9075

(DS9072 - DS9076) SIP Stik Connectors

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Maxim Integrated Products DS9075-40V-NO-BRAND SOCKET ADAPTER SIP TO 40DIP DigiKey 0 1 units
$39.78

DS9075 Datasheet (55.55 KB)

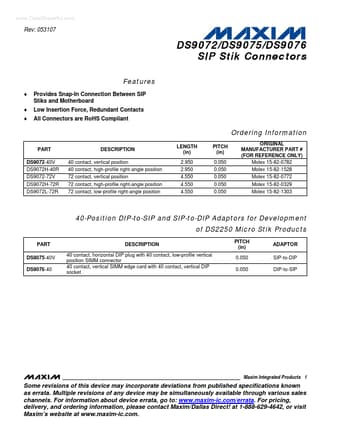

Preview of DS9075 PDF

Datasheet Details

Part number:

DS9075

Manufacturer:

Maxim Integrated ↗ Products

File Size:

55.55 KB

Description:

(ds9072 - ds9076) sip stik connectors.

DS9075 Features

* Provides Snap-In Connection Between SIP Stiks and Motherboard Low Insertion Force, Redundant Contacts All Connectors are RoHS Compliant Ordering Information PART DS9072-40V DS9072H-40R DS9072-72V DS9072H-72R DS9072L-72R DESCRIPTION 40 contact, vertical position 40 cont

DS9075 General Description

40 contact, vertical position 40 contact, high-profile right-angle position 72 contact, vertical position 72 contact, high-profile right-angle position 72 contact, low-profile right-angle position LENGTH (in) 2.950 2.950 4.550 4.550 4.550 PITCH (in) 0.050 0.050 0.050 0.050 0.050 ORIGINAL MANUFACTURE.
