DS9108 Datasheet, Monitor, Maxim Integrated Products

DS9108 Features

  • Monitor Three DS1921G networked to monitor temperate at the top, bottom and center of the stick Connects to 1-Wire reader/writer through colorcoded 18 AWG (1 mm Ø) stranded wires with ½ inch (1

PDF File Details

Part number:

DS9108

Manufacturer:

Maxim Integrated ↗ Products

File Size:

143.60kb

Download:

📄 Datasheet

Description:

Concreat temperature monitor. This product is a sealed plastic stick containing three DS1921G iButtonsÒ. The iButtons are connected in parallel through metal plate

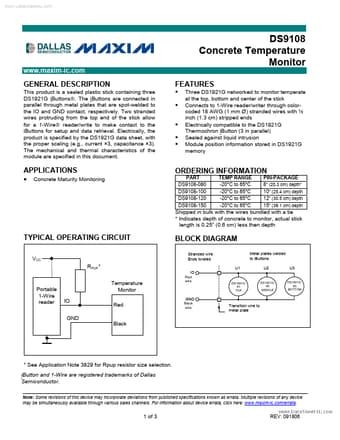

Datasheet Preview: DS9108 📥 Download PDF (143.60kb)
Page 2 of DS9108 Page 3 of DS9108

DS9108 Application

  • Applications
  • Concrete Maturity Monitoring ORDERING INFORMATION PART DS9108-080 DS9108-100 DS9108-120 DS9108-150 TEMP RANGE -20°C to 65°C
