DS9101 - Multipurpose

Product Overview

Maxim Integrated

Datasheet Details

Part number	DS9101
Manufacturer	Maxim Integrated
File Size	143.56 KB
Description	Multipurpose
Datasheet	DS9101 Datasheet

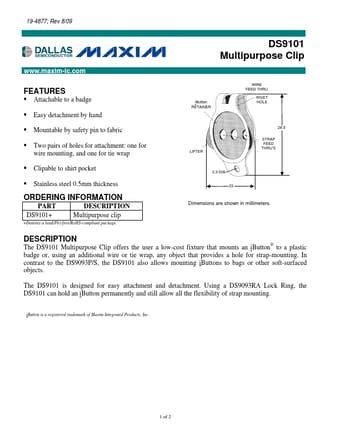

Additional preview pages of the DS9101 datasheet.

Product details

Description

DS9101+ Multipurpose clip +Denotes a lead(Pb)-free/RoHS-compliant package.DS9101 Multipurpose Clip iButton RETAINER WIRE FEED THRU RIVET HOLE LIFTER 28.5 STRAP FEED THRU’S 2.3 DIA.23 Dimensions are shown in millimeters.DESCRIPTION The DS9101 Multipurpose Clip offers the user a low-cost fixture that mounts an iButton® to a plastic badge or, using an additional wire or tie wrap, any object that provides a hole for strap-mounting.In contrast to the DS9093P/S, the DS9101 also allows mo

Features

Attachable to a badge.
Easy detachment by hand.
Mountable by safety pin to fabric.
Two pairs of holes for attachment: one for wire mounting, and one for tie wrap.
Clipable to shirt pocket.
Stainless steel 0.5mm thickness.
