DS91C176

100 MHz Single Channel M-LVDS Transceiver

DS91C176 Features

* 1

* 2 DC to 100+ MHz / 200+ Mbps Low Power, Low EMI Operation

* Optimal for ATCA, uTCA Clock Distribution Networks

* Meets or Exceeds TIA/EIA-899 M-LVDS Standard

* Wide Input Common Mode Voltage for Increased Noise Immunity

* DS91D176 has Type 1 Receiver Input

DS91C176 General Description

The DS91C176 and DS91D176 are 100 MHz single channel M-LVDS (Multipoint Low Voltage Differential Signaling) transceivers designed for applications that utilize multipoint networks (e.g. clock distribution in ATCA and uTCA based systems). M-LVDS is a new bus interface standard (TIA/EIA-899) optimized.

DS91C176 Datasheet (1.15 MB)

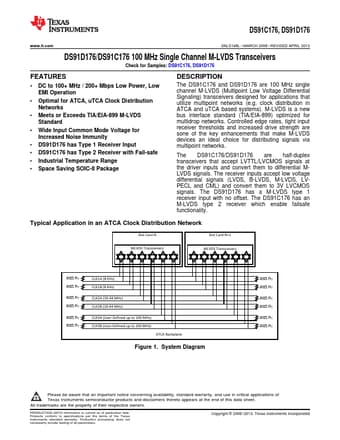

Preview of DS91C176 PDF

Datasheet Details

Part number:

DS91C176

Manufacturer:

Texas Instruments ↗

File Size:

1.15 MB

Description:

100 mhz single channel m-lvds transceiver.
DS91C176, DS91D176 www.ti.com SNLS146L

* MARCH 2006

* REVISED APRIL 2013 DS91D176/DS91C176 100 MHz Single Channel M-LVDS Transceive.
