DS91M040 Datasheet - Texas Instruments

DS91M040 125 MHz Quad M-LVDS Transceiver

The DS91M040 is a quad M-LVDS transceiver designed for driving / receiving clock or data signals to / from up to four multipoint networks. M-LVDS (Multipoint LVDS) is a new family of bus interface devices based on LVDS technology specifically designed for multipoint and multidrop cable and backplane.

DS91M040 Features

* 1

* 2 DC - 125 MHz / 250 Mbps Low Jitter, Low Skew, Low Power Operation

* Wide Input Common Mode Voltage Range Allows up to ±1V of GND Noise

* Conforms to TIA/EIA-899 M-LVDS Standard

* Pin Selectable M-LVDS Receiver Type (1 or 2)

* Controlled Transition Times (

DS91M040 Datasheet (1.10 MB)

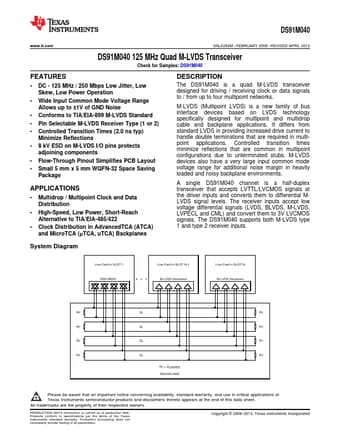

Preview of DS91M040 PDF
DS91M040 Datasheet Preview Page 2 DS91M040 Datasheet Preview Page 3

Datasheet Details

Part number:

DS91M040

Manufacturer:

Texas Instruments ↗

File Size:

1.10 MB

Description:

125 mhz quad m-lvds transceiver.
