DS91M124

125 MHz 1:4 M-LVDS Repeater

DS91M124 Features

* 1

* 2 DC - 125 MHz / 250 Mbps Low Jitter, Low Skew, Low Power Operation

* Independent Driver Enable Pins

* Conforms to TIA/EIA-899 M-LVDS Standard

* Controlled Transition Times Minimize Reflections

* 8 kV ESD on M-LVDS I/O Pins Protects Adjoining Components

DS91M124 General Description

The DS91M124 is a 1:4 M-LVDS repeater for driving and distributing clock or data signals to up to four multipoint networks. M-LVDS (Multipoint LVDS) is a new family of bus interface devices based on LVDS technology specifically designed for multipoint and multidrop cable and backplane applications. .

DS91M124 Datasheet (888.53 KB)

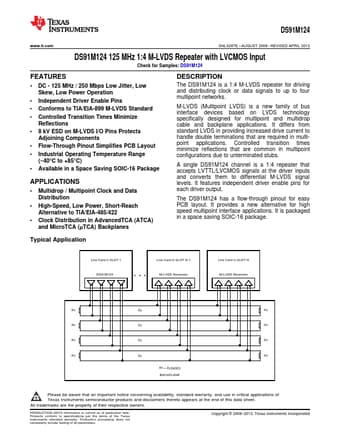

Preview of DS91M124 PDF

Datasheet Details

Part number:

DS91M124

Manufacturer:

Texas Instruments ↗

File Size:

888.53 KB

Description:

125 mhz 1:4 m-lvds repeater.
DS91M124 www.ti.com SNLS287E

* AUGUST 2008

* REVISED APRIL 2013 DS91M124 125 MHz 1:4 M-LVDS Repeater with LVCMOS Input Check for Sa.
