DS9107 Datasheet - Maxim Integrated Products

DS9107 iButton Capsule

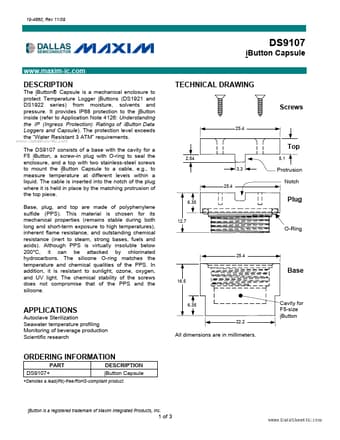

TECHNICAL DRAWING Screws 25.4 www.DataSheet4U.com Top 2.54 3.3 5.1 Protrusion Notch 25.4 6.35 Plug 12.7 O-Ring 25.4 Base 16.5 APPLICATIONS Autoclave Sterilization Seawater temperature profiling Monitoring of beverage production Scientific research 6.35 Cavity for F5-size iButton 22.2 .
19-4880; Rev 11/09 DS9107 iButton Capsule www.maxim-ic.com The iButton Capsule is a mechanical enclosure to protect Temperature Logger iButtons (DS1921 and DS1922 series) from moisture, solvents and pressure. It provides IP68 protection to the iButton inside (refer to Application Note 4126: Understanding the IP (Ingress Protection) Ratings of iButton Data Loggers and Capsule). The protection level exceeds the “Water Resistant 3 ATM” requirements. The DS9107 consists of a base with the cavity f.

DS9107_MaximIntegratedProducts.pdf

Preview of DS9107 PDF
DS9107 Datasheet Preview Page 2 DS9107 Datasheet Preview Page 3

Datasheet Details

Part number:

DS9107

Manufacturer:

Maxim Integrated ↗ Products

File Size:

173.06 KB

Description:

Ibutton capsule.
