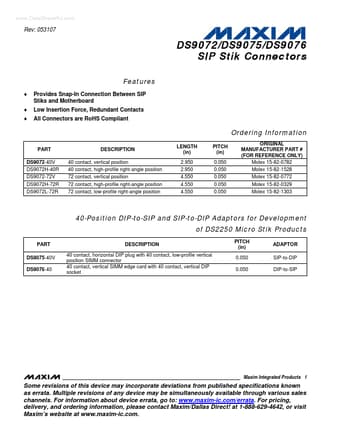

DS9076, DS9075 Datasheet - Maxim Integrated Products

DS9076 (DS9072 - DS9076) SIP Stik Connectors

40 contact, vertical position 40 contact, high-profile right-angle position 72 contact, vertical position 72 contact, high-profile right-angle position 72 contact, low-profile right-angle position LENGTH (in) 2.950 2.950 4.550 4.550 4.550 PITCH (in) 0.050 0.050 0.050 0.050 0.050 ORIGINAL MANUFACTURE.

DS9075_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: DS9076, DS9075. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DS9076, DS9075

Manufacturer:

Maxim Integrated ↗ Products

File Size:

55.55 KB

Description:

(ds9072 - ds9076) sip stik connectors.

Note:

This datasheet PDF includes multiple part numbers: DS9076, DS9075.
Please refer to the document for exact specifications by model.
