DS9100 Features

* Compact two-piece, all-metal receptacle for F5 MicroCanTM Accepts two-thirds of the MicroCan (onethird of MicroCan will extend out) Allows reading iButtons with either momentary or dwelled contact Outer ring will hold MicroCan for dwelled contact Two options for data contact: cantilever (DS9100B) or

DS9100 General Description

The DS9100 Touch and Hold Probe Stampings' function is similar to the DS9098 iButton Retainer. An F5 MicroCan will fit completely into the DS9098, but the flange and about one-third of the can will extend out if pressed into the DS9100. As a probe, the DS9100A together with the coiled spring DS9100C.

DS9100 Datasheet (110.71 KB)

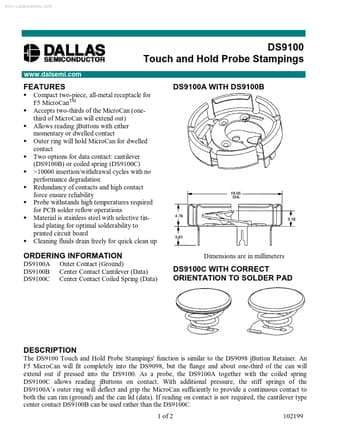

Preview of DS9100 PDF

Datasheet Details

Part number:

DS9100

Manufacturer:

Dallas Semiconducotr

File Size:

110.71 KB

Description:

Touch and hold probe stampings.
