DS91M125 - 125 MHz 1:4 M-LVDS Repeater

DS91M125 Description

DS91M125 www.ti.com SNLS290C * AUGUST 2008 * REVISED APRIL 2013 DS91M125 125 MHz 1:4 M-LVDS Repeater with LVDS Input Check for Samp.
The DS91M125 is a 1:4 M-LVDS repeater designed for driving and distributing clock or data signals to up to four multipoint networks.

DS91M125 Features

* 1
* 2 DC - 125 MHz / 250 Mbps Low Jitter, Low Skew, Low Power Operation
* Independent Driver Enable Pins
* Outputs Conform to TIA/EIA-899 M-LVDS Standard
* Controlled Transition Times Minimize Reflections
* Inputs Conform to TIA/EIA-644-A LVDS Standard

DS91M125 Applications

* Multidrop / Multipoint Clock and Data Distribution
* High-Speed, Low Power, Short-Reach Alternative to TIA/EIA-485/422

📥 Download Datasheet

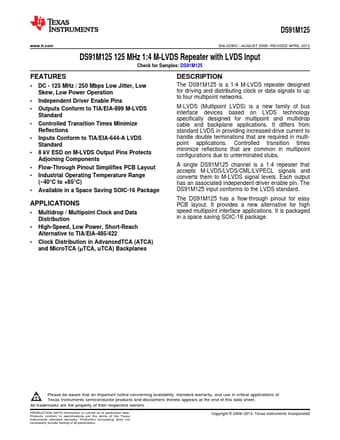

Preview of DS91M125 PDF
