DS9503 ESD Protection Diode

This DS9503 is designed as an ESD protection device for 1 *Wire MicroLAN interfaces. In contrast to the DS9502, the DS9503 includes two 5isolation resistors on chip. Although 5are negligible during communication, they represent a high i.

DS9503 Features

* Zener characteristic with voltage snap

* back to protect against ESD hits

* High avalanche voltage, low leakage and low capacitance avoid signal attenuation

* Compatible to all 5V logic families

* Space saving, low inductance TSOC surface mount package

* On

* chip 5

DS9503-MaximIntegrated.pdf

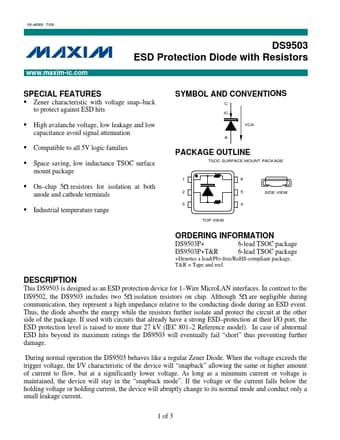

DS9503 Datasheet Preview — Preview of DS9503 PDF

Datasheet Details

Part number:

DS9503

Manufacturer:

Maxim Integrated ↗

File Size:

56.69 KB

Description:

Esd protection diode.
