DS1411 Serial Port iButton Holder

DS1411 Description

DS1411 Serial Port iButton ™ Holder www.dalsemi.com .
The DS1411 is a sophisticated RS232 to 1-Wire TM adapter and iButton holder which performs RS232 level conversion and actively generates the 1-Wire co.

DS1411 Features

* Small size, true-ground interface to an RS232 COM Port for reading and writing iButton devices Works with bipolar logic signals of ± 5V to ± 12V (RS232C) as well as unipolar signals of 5V to 12V www. DataSheet4U. com Supports reading and writing at regular and Overdrive speeds Provides strong pullup

DS1411 Applications

* that use only a single iButton. Multiple iButtons can be connected using standard MicroLAN Cables and button holders (see DS1401 and DS1402x data sheets). 1-Wire communication is supported by the adapter for regular as well as Overdrive speed. The serial port must support a data transmission rate of

📥 Download Datasheet

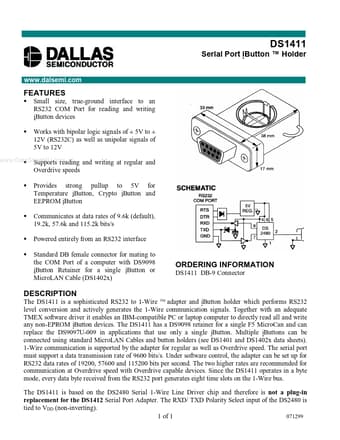

Preview of DS1411 PDF

Datasheet Details

Part number
DS1411
Manufacturer
Dallas Semiconductor
File Size
78.05 KB
Datasheet
DS1411_DallasSemiconductor.pdf
Description
Serial Port iButton Holder
