DS1413 Passive Serial Port iButton Holder

DS1413 Description

DS1413 Passive Serial Port iButton ™ Holder www.dalsemi.com .
The DS1413 Passive Serial Port iButton Holder is a simple, lowcost adapter which performs RS232C (±12V) level conversion, allowing a non-EPROM iButton.

DS1413 Features

* Small size, low-cost interface to an RS232C COM Port for reading and writing iButton devices
* Supports reading all and writing nonEPROM iButton devices at regular speed
* Powered entirely from an RS232 interface www. DataSheet4U. com
* Standard DB female connector for mating to the

DS1413 Applications

* that use only a single iButton. Multiple iButtons can be connected to the DS1413 using standard MicroLAN Cables and button holders (see DS1401 and DS1402x data sheets). The DS1413 does not support the strong pullup which is required to run the Crypto iButton. For applications requiring a strong 5V p

📥 Download Datasheet

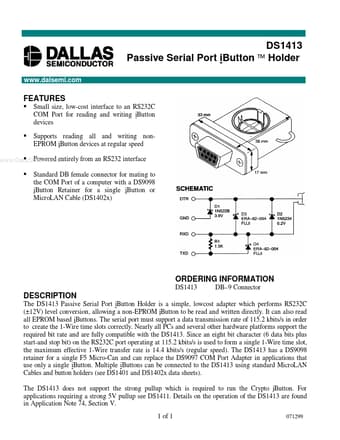

Preview of DS1413 PDF
