DS1743 - Y2KC Nonvolatile Timekeeping RAM

Dallas

The DS1743 by Dallas is a Y2KC Nonvolatile Timekeeping RAM. Below is the official datasheet preview.

📥 Download Datasheet

DS1743 Y2KC Nonvolatile Timekeeping RAM by Dallas - Datasheet Preview — Official preview page of the **DS1743** Y2KC Nonvolatile Timekeeping RAM datasheet (Dallas).

Datasheet Details

Part number	DS1743
Manufacturer	Dallas
File Size	247.62 KB
Description	Y2KC Nonvolatile Timekeeping RAM
Datasheet	DS1743_Dallas.pdf
Additional preview pages of the DS1743 datasheet.

DS1743 Product details

Description

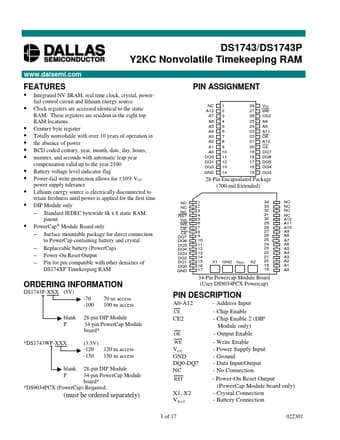

A0-A12 CE 28-pin DIP Module 34-pin PowerCap Module board (3.3V) -120 120 ns access -150 150 ns access CE2 OE WE DS1743WP-XXX 28-pin DIP Module 34-pin PowerCap Module board DS9034PCX (PowerCap) Required: blank P VCC GND DQ0-DQ7 NC RST (must be ordered separately) X1, X2 VBAT 1 of 17 - Address Input - Chip Enable - Chip Enable 2 (DIP Module only) - Output Enable - Write Enable - Power Supply Input - Ground - Data Input/Output - No Connection - Power-On Reset Output (Po

Features

Integrated NV SRAM, real time clock, crystal, powerfail control circuit and lithium energy source Clock registers are accessed identical to the static RAM. These registers are resident in the eight top RAM locations. Century byte register Totally nonvolatile with over 10 years of operation in the absence of power BCD coded century, year, month, date, day, hours, minutes, and seconds with automatic leap year compensation valid up to the year 2100 Battery voltage level indicator flag Power-fail wr.
