DS1707 - 3.3/5.0-Volt MicroMonitor

Datasheet Summary

Description

PBRST VCC GND IN - Pushbutton Reset Input - Power Supply - Ground - Input NMI - Non-maskable Interrupt NC - No Connect RST - Active Low Reset Output RST - Active High Reset Output DESCRIPTION The DS1707/DS1708 3.3- or 5.0-Volt MicroMonitor monitors three vital conditions for a microprocessor: p

Features

  • Holds microprocessor in check during power transients.
  • Automatically restarts microprocessor after power failure.
  • Monitors pushbutton for external override.
  • Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems.
  • Eliminates the need for discrete components.
  • 20% tolerance compatible with 3.0V systems.
  • Pin compatible with the MAXIM MAX707/MAX708 in 8-pin DIP, 8-pin SOIC packages.
  • 8-pin DIP, 8-pin and m-SOP SOIC and 8-pin m-SOP.

📥 Download Datasheet

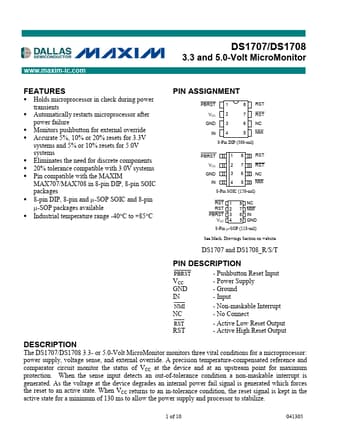

Datasheet preview – DS1707

Datasheet Details

Part number DS1707
Manufacturer Maxim Integrated
File Size 177.02 KB
Description 3.3/5.0-Volt MicroMonitor
Datasheet download datasheet DS1707 Datasheet
Additional preview pages of the DS1707 datasheet.

📁 Similar Datasheet

  • DS1705 - 3.3 and 5.0 Volt MicroMonitor (Dallas)
  • DS1706 - 3.3 and 5.0 Volt MicroMonitor (Dallas)
  • DS17-08A - Rectifier Diode (IXYS)
  • DS17-12A - Rectifier Diode (IXYS)
  • DS1710 - Partitioned NV Controller (Dallas)
  • DS1720 - Digital Thermometer and Thermostat (Dallas)
  • DS1721 - 2-Wire Digital Thermometer and Thermostat (Dallas)
  • DS1722 - Digital Thermometer with SPI/3-Wire Interface (Dallas)
  • DS17285 - DS17287 / 3V/5V Real-Time Clock (Dallas)
  • DS1731 - High-Precision Digital Thermometer and Thermostat (Dallas)
Other Datasheets by Maxim Integrated
  • DS1706 - 3.3V and 5.0V MicroMonitor
  • DS1708 - 3.3/5.0-Volt MicroMonitor
  • DS1726 - High-Precision 3-Wire Digital Thermometer/Thermostat
  • DS1775 - Digital Thermometer and Thermostat
  • DS1075 - 3.3V and 5.0V MicroMonitor
  • DS1085 - EconOscillator Frequency Synthesizer
  • DS1086L - 3.3V Spread-Spectrum EconOscillator
  • DS1088E - Fixed-Frequency EconOscillator

Full PDF Text Transcription

Click to expand full text
www.maxim-ic.com DS1707/DS1708 3.3 and 5.0-Volt MicroMonitor FEATURES § Holds microprocessor in check during power transients § Automatically restarts microprocessor after power failure § Monitors pushbutton for external override § Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems § Eliminates the need for discrete components § 20% tolerance compatible with 3.
