DS1721 - 2-Wire Digital Thermometer and Thermostat

Datasheet Summary

Description

SDA SCL GND TOUT A0 A1 A2 VDD - 2-Wire Serial Data Input/Output - 2-Wire Serial Clock - Ground - Thermostat Output Signal - Chip Address Input - Chip Address Input - Chip Address Input - Power Supply Voltage (+5V) DESCRIPTION The DS1721 2-Wire Digital Thermometer and Thermostat provides 12-bit temp

Features

  • Temperature measurements require no external components with ±1°C accuracy Measures temperatures from -55°C to +125°C; Fahrenheit equivalent is -67°F to +257°F Temperature resolution is configurable from 9 to 12 (default) bits (0.5°C to 0.0625°C resolution) Maximum conversion time (9-bit resolution) of 150 ms Thermostatic settings are user-definable Data is read/written via a 2-wire serial interface (open drain I/O lines); 3-bit addressability Wide power supply range (2.7V - 5.5V).

📥 Download Datasheet

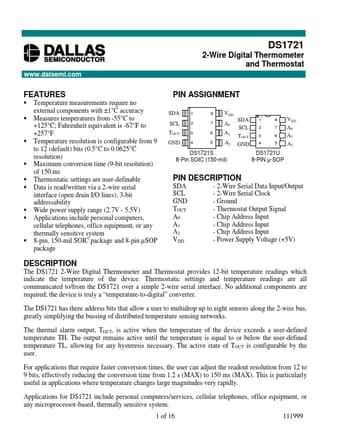

Datasheet preview – DS1721

Datasheet Details

Part number DS1721
Manufacturer Dallas
File Size 210.84 KB
Description 2-Wire Digital Thermometer and Thermostat
Datasheet download datasheet DS1721 Datasheet
Additional preview pages of the DS1721 datasheet.

📁 Similar Datasheet

  • DS1726 - High-Precision 3-Wire Digital Thermometer/Thermostat (Maxim Integrated)
  • DS17-08A - Rectifier Diode (IXYS)
  • DS17-12A - Rectifier Diode (IXYS)
  • DS1706 - 3.3V and 5.0V MicroMonitor (Maxim Integrated)
  • DS1707 - 3.3/5.0-Volt MicroMonitor (Maxim Integrated)
  • DS1708 - 3.3/5.0-Volt MicroMonitor (Maxim Integrated)
  • DS1731 - High-Precision Digital Thermometer and Thermostat (Maxim)
  • DS1775 - Digital Thermometer and Thermostat (Maxim Integrated)
  • DS1776 - PI-Bus Transceiver (National)
  • DS1776QML - DS1776QML Pi-Bus Transceiver (Rev. B) (ETCTI)
Other Datasheets by Dallas
  • DS1720 - Digital Thermometer and Thermostat
  • DS1722 - Digital Thermometer with SPI/3-Wire Interface
  • DS17285 - DS17287 / 3V/5V Real-Time Clock
  • DS1705 - 3.3 and 5.0 Volt MicroMonitor
  • DS1706 - 3.3 and 5.0 Volt MicroMonitor
  • DS1710 - Partitioned NV Controller
  • DS1731 - High-Precision Digital Thermometer and Thermostat
  • DS1742 - Y2KC Nonvolatile Timekeeping RAM

Full PDF Text Transcription

Click to expand full text
DS1721 2-Wire Digital Thermometer and Thermostat www.dalsemi.com FEATURES Temperature measurements require no external components with ±1°C accuracy Measures temperatures from -55°C to +125°C; Fahrenheit equivalent is -67°F to +257°F Temperature resolution is configurable from 9 to 12 (default) bits (0.5°C to 0.0625°C resolution) Maximum conversion time (9-bit resolution) of 150 ms Thermostatic settings are user-definable Data is read/written via a 2-wire serial interface (open drain I/O lines); 3-bit addressability Wide power supply range (2.7V - 5.
