DS1726

High-Precision 3-Wire Digital Thermometer/Thermostat

DS1726 Features

* Temperature Measurements Require No External Components Measure Temperatures from -55°C to +125°C (-67°F to +257°F) DS1626: ±0.5°C Accuracy from 0°C to +70°C DS1726: ±1°C Accuracy from -10°C to +85°C Output Resolution is User Selectable to 9, 10, 11, or 12 Bits Wide Power-Supply Range (2.7V to 5.5V)

DS1726 General Description

The DS1626 and DS1726 digital thermometers/thermostats provide temperature measurements and stand-alone thermostat capability over a -55°C to +125°C range. The DS1626 offers ±0.5°C accuracy from 0°C to +70°C and the DS1726 has ±1°C accuracy from -10°C to +85°C. The resolution of the measured tempera.

DS1726 Datasheet (141.32 KB)

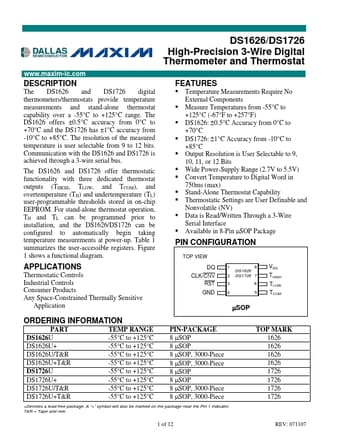

Preview of DS1726 PDF

Datasheet Details

Part number:

DS1726

Manufacturer:

Maxim Integrated ↗

File Size:

141.32 KB

Description:

High-precision 3-wire digital thermometer/thermostat.
