DS1720 - Digital Thermometer and Thermostat

DS1720 Description

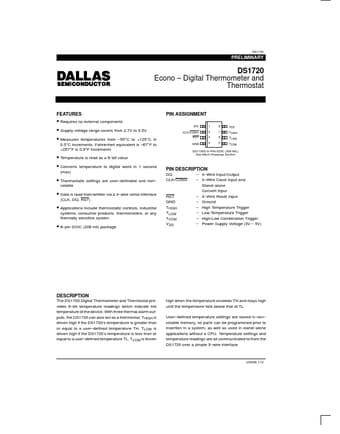

DS1720 PRELIMINARY DS1720 Econo * Digital Thermometer and Thermostat .
3. Wire Input/Output. 3. Wire Clock Input and Stand. alone Convert Input. 3. Wire Reset Input.

DS1720 Features

* PIN ASSIGNMENT DQ CLK/CONV RST GND 1 2 3 4 8 7 6 5 VDD THIGH TLOW TCOM
* Requires no external components
* Supply voltage range covers from 2.7V to 5.5V
* Measures temperatures from
* 55°C to +125°C in 0.5°C increments. Fahrenheit equivalent is
* 67°F to +257°

DS1720 Applications

* include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system
