2SC945 - NPN Transistor

2SC945 Description

DC COMPONENTS CO., LTD.R 2SC945 DISCRETE SEMICONDUCTORS TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR .
Designed for use in driver stage of AF amplifier applications.

2SC945 Applications

* TO-92 .190(4.83) .170(4.33) .190(4.83) .170(4.33) 2 Typ 2 Typ o o Pinning 1 = Emitter 2 = Collector 3 = Base Absolute Maximum Ratings(TA=25 Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Power Dissipation Junction Tempera

📥 Download Datasheet

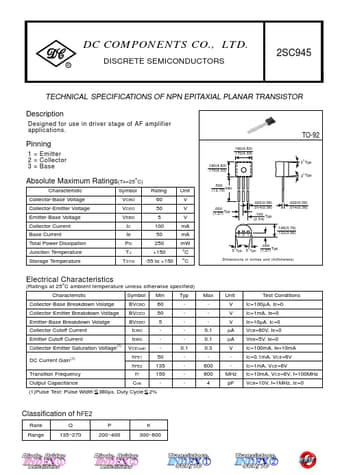

Preview of 2SC945 PDF

Datasheet Details

Part number
2SC945
Manufacturer
Dc Components
File Size
230.46 KB
Datasheet
2SC945_DcComponents.pdf
Description
NPN Transistor
