BR352L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

This page provides the datasheet information for the BR352L, a member of the BR3505L (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER family.

Datasheet Summary

Features

Plastic case with heatsink for Maximum Heat Dissipation Diffused Junction High current capability Surge overload ratings - 400 Amperes Low forward voltage drop High Reliability Designed for saving mounting space .140(3.6) .120(3.1) BR-25L METAL HEAT SINK.

Dc Components

📥 Download Datasheet

Datasheet Details

Part number	BR352L
Manufacturer	Dc Components
File Size	211.68 KB
Description	(BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	BR352L Datasheet
Additional preview pages of the BR352L datasheet.

📁 Similar Datasheet

BR352 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
BR352 - SINGLE PHASE BRIDGE RECTIFIER (MIC)
BR352W - Single Phase 35.0 AMPS. Silicon Bridge Rectifiers (GOOD ELECTRONIC)
BR350 - 35 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER (ETC)
BR3500 - Bridge Rectifier (Formosa MS)
BR3500 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
BR35005 - Bridge Rectifiers (Yangzhou Yangjie)
BR35005 - SILICON BRIDGE RECTIFIERS (GALAXY ELECTRICAL)
BR35005 - Silicon Bridge Rectifiers (SeCoS)
BR35005 - Silicon Bridge Rectifiers (LGE)

Other Datasheets by Dc Components

BR352W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR3505L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR3505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR3510W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR351L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR351W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR354L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR354W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

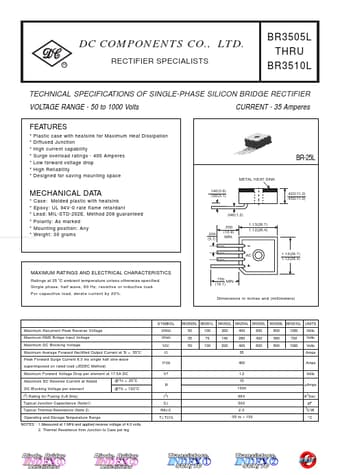

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS BR3505L THRU BR3510L TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 35 Amperes FEATURES * * * * * * * Plastic case with heatsink for Maximum Heat Dissipation Diffused Junction High current capability Surge overload ratings - 400 Amperes Low forward voltage drop High Reliability Designed for saving mounting space .140(3.6) .120(3.1) BR-25L METAL HEAT SINK MECHANICAL DATA * Case: Molded plastic with heatsink * Epoxy: UL 94V-0 rate flame retardant * Lead: MIL-STD-202E, Method 208 guaranteed * Polarity: As marked * Mounting position: Any * Weight: 30 grams www.DataSheet4U.com .422(11.2) .432(11.0) .040(1.2) .550 (13.9) MIN. 1.13(28.7) 1.12(28.4) .200 (5.1) AC 1.13(28.7) 1.
