BR3510W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Datasheet Summary

Features

  • Plastic case with heatsink for Maximum Heat Dissipation.
  • Surge overload ratings-400 Amperes.
  • Low forward voltage drop BR-25W METAL HEAT SINK TYP.

📥 Download Datasheet

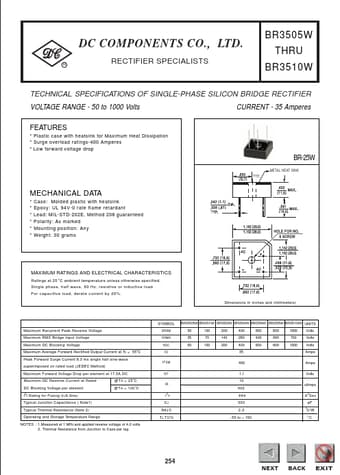

Datasheet preview – BR3510W

Datasheet Details

Part number BR3510W
Manufacturer Dc Components
File Size 551.19 KB
Description TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet download datasheet BR3510W Datasheet
Additional preview pages of the BR3510W datasheet.

📁 Similar Datasheet

  • BR3510W - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • BR3510W - Glass Passivated Single Phase Bridge Rectifiers (Microsemi)
  • BR3510W - Bridge Rectifiers (Yangzhou Yangjie)
  • BR3510W - Silicon Bridge Rectifiers (HY ELECTRONIC)
  • BR3510W - Single Phase 35.0 AMPS. Silicon Bridge Rectifiers (GOOD ELECTRONIC)
  • BR3510W - SILICON BRIDGE RECTIFIERS (GALAXY ELECTRICAL)
  • BR3510W - Silicon Bridge Rectifiers (LGE)
  • BR3510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
  • BR3510 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • BR3510 - Bridge Rectifier (Formosa MS)
Other Datasheets by Dc Components
  • BR351L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR351W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR3505L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR3505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR352L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR352W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR354L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR354W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
DC COMPONENTS CO., LTD. R BR3505W THRU BR3510W RECTIFIER SPECIALISTS TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 35 Amperes FEATURES * Plastic case with heatsink for Maximum Heat Dissipation * Surge overload ratings-400 Amperes * Low forward voltage drop BR-25W METAL HEAT SINK TYP MECHANICAL DATA * * * * * * Case: Molded plastic with heatsink Epoxy: UL 94V-0 rate flame retardant Lead: MIL-STD-202E, Method 208 guaranteed Polarity: As marked Mounting position: Any Weight: 30 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
