BR3512W - Glass Passivated Single Phase Bridge Rectifiers

This page provides the datasheet information for the BR3512W, a member of the BR3506W Glass Passivated Single Phase Bridge Rectifiers family.

Datasheet Summary

Features

  • y High thermal conductivity packge, electrically insulated case y Centre hole fixing y Glass passivated chips y High IFSM y Epoxy compound has classification UL94V-0 +~ ~.

📥 Download Datasheet

Datasheet preview – BR3512W

Datasheet Details

Part number BR3512W
Manufacturer Microsemi
File Size 152.82 KB
Description Glass Passivated Single Phase Bridge Rectifiers
Datasheet download datasheet BR3512W Datasheet
Additional preview pages of the BR3512W datasheet.

📁 Similar Datasheet

  • BR3512 - Bridge Rectifier (Formosa MS)
  • BR351 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
  • BR351 - SINGLE PHASE BRIDGE RECTIFIER (MIC)
  • BR3510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
  • BR3510 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • BR3510 - Bridge Rectifier (Formosa MS)
  • BR3510 - SINGLE PHASE BRIDGE RECTIFIER (MIC)
  • BR3510 - Bridge Rectifiers (Yangzhou Yangjie)
  • BR3510 - SILICON BRIDGE RECTIFIERS (GALAXY ELECTRICAL)
  • BR3510 - Silicon Bridge Rectifiers (SeCoS)
Other Datasheets by Microsemi
  • BR3510W - Glass Passivated Single Phase Bridge Rectifiers
  • BR3514W - Glass Passivated Single Phase Bridge Rectifiers
  • BR3516W - Glass Passivated Single Phase Bridge Rectifiers
  • BR3506W - Glass Passivated Single Phase Bridge Rectifiers
  • BR3508W - Glass Passivated Single Phase Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

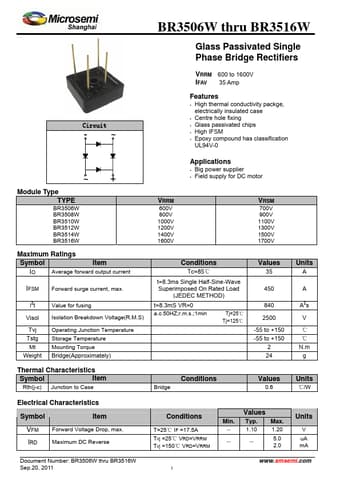

BR3506W thru BR3516W Glass Passivated Single Phase Bridge Rectifiers Circuit - VRRM 600 to 1600V IFAV 35 Amp Features y High thermal conductivity packge, electrically insulated case y Centre hole fixing y Glass passivated chips y High IFSM y Epoxy compound has classification UL94V-0 +~ ~ Applications y Big power supplier y Field supply for DC motor Module Type TYPE BR3506W BR3508W BR3510W BR3512W BR3514W BR3516W Maximum Ratings Symbol Item IO Average forward output current IFSM Forward surge current, max. i2t Visol Tvj Tstg Mt Weight Value for fusing Isolation Breakdown Voltage(R.M.S) Operating Junction Temperature Storage Temperature Mounting Torque Bridge(Approximately) VRRM 600V 800V 1000V 1200V 1400V 1600V Conditions Tc=85℃ t=8.
