DCR106-3 - SENSITIVE GATE SILICON CONTROLLED RECTIFIER

📥 Download Datasheet

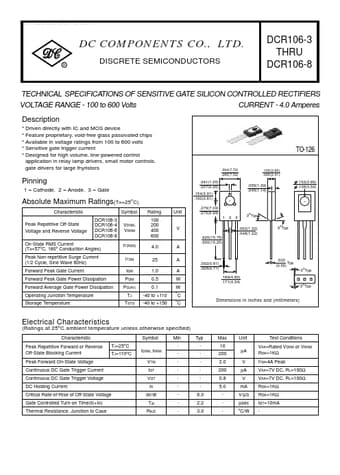

Preview of DCR106-3 PDF

Datasheet Details

Part number DCR106-3
Manufacturer Dc Components
File Size 78.96 KB
Description SENSITIVE GATE SILICON CONTROLLED RECTIFIER
Datasheet download datasheet DCR106-3_DcComponents.pdf

DCR106-3 Product details

Description

Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-126 .304(7.72) .285(7.52) .105(2.66) .095(2.41) Pinning 1 = Cathode, 2 = Anode, 3 = Gate .041(1.05) .037(0.95) .154(3.91) .150(3.81) .055(1.39) .045(1
