| Part number | DCR106-4, DCR106-3 |
|---|---|
| Manufacturer | Dc Components |
| File Size | 78.96 KB |
| Description | SENSITIVE GATE SILICON CONTROLLED RECTIFIER |
| Datasheet |

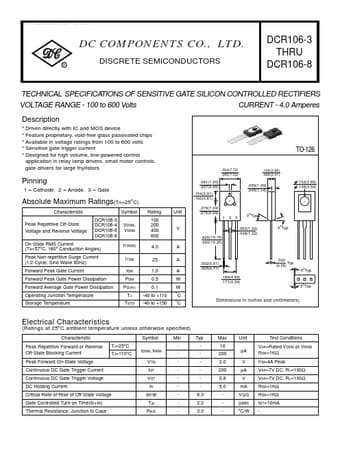

 DCR106-3_DcComponents.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: DCR106-4, DCR106-3. Please refer to the document for exact specifications by model. |
Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-126 .304(7.72) .285(7.52) .105(2.66) .095(2.41) Pinning 1 = Cathode, 2 = Anode, 3 = Gate .041(1.05) .037(0.95) .154(3.91) .150(3.81) .055(1.39) .045(1
