MMB152, MMB1505 - (MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Dc Components

Datasheet Details

Part number	MMB152, MMB1505
Manufacturer	Dc Components
File Size	308.27 KB
Description	(MMB1505 - MMB1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

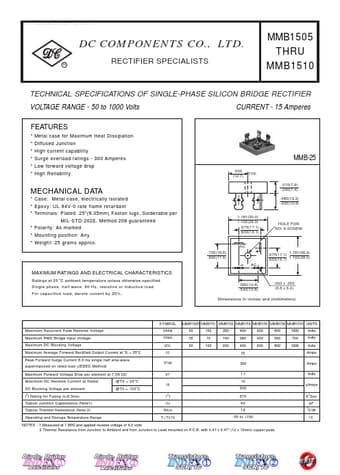

Datasheet	MMB1505_DcComponents.pdf
Note	This datasheet PDF includes multiple part numbers: MMB152, MMB1505. Please refer to the document for exact specifications by model.

Metal case for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) MMB-25.
