MMB1G, MMB1G-GalaxySemi - SILICON BRIDGE RECTIFIERS

MMB1G Description

Production specification SILICON BRIDGE RECTIFIERS MMB1G *MMB10G .

MMB1G Features

* z Glass：passivated chip junctions z High surge overload rating: 30A peak Pb Lead-free z Saves space on printed circuit boards z High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.3kg) tension MECHANICAL DATA z Case: Molded plastic body over passivated junctions z Terminals: P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMB1G, MMB1G-GalaxySemi. Please refer to the document for exact specifications by model.

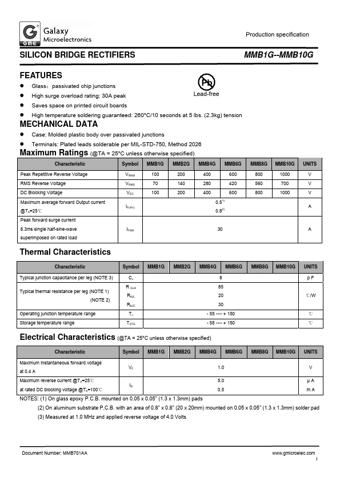

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMB1G, MMB1G-GalaxySemi
Manufacturer
GME
File Size
244.38 KB
Datasheet
MMB1G-GalaxySemi-Conductor.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MMB1G, MMB1G-GalaxySemi.
Please refer to the document for exact specifications by model.
