LC-155Axxxxxx - 155Mbps 2x5 SFF LC Duplex Optical Transceiver Module

Product Overview

Delta Electronics

Datasheet Details

Part number	LC-155Axxxxxx
Manufacturer	Delta Electronics
File Size	172.59 KB
Description	155Mbps 2x5 SFF LC Duplex Optical Transceiver Module
Datasheet	LC-155Axxxxxx Datasheet

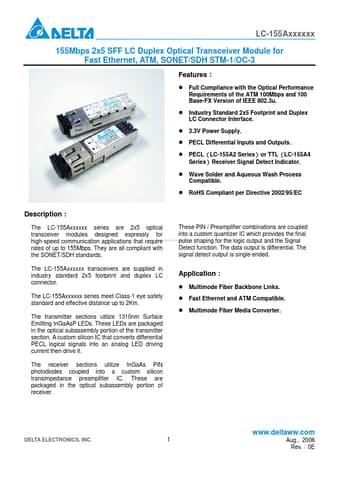

Additional preview pages of the LC-155Axxxxxx datasheet.

Product details

Description

These PIN / Preamplifier combinations are coupled The LC-155Axxxxxx series are 2x5 optical into a custom quantizer IC which provides the final transceiver modules designed expressly for www.DataSheet4U.com pulse shaping for the logic output and the Signal high-speed communication applications that require Detect function.

Features

Full Compliance with the Optical Performance Requirements of the ATM 100Mbps and 100 Base-FX Version of IEEE 802.3u. Industry Standard 2x5 Footprint and Duplex LC Connector Interface. 3.3V Power Supply. PECL Differential Inputs and Outputs. PECL LC-155A2 Series or TTL LC-155A4 Series Receiver Signal Detect Indicator. Wave Solder and Aqueous Wash Process Compatible. RoHS Compliant per Directive 2002/95/EC.
